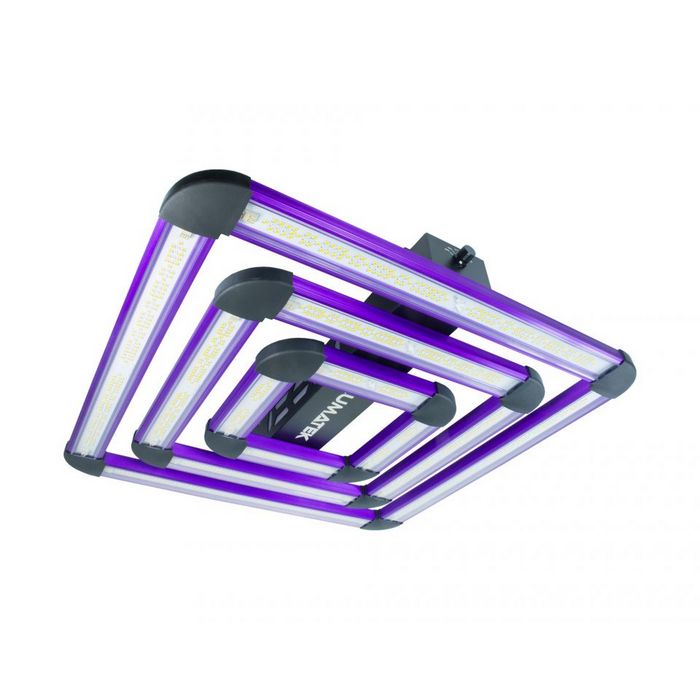

Lumatek ATS series is a range of full spectrum LED grow lights featuring top bin LUMLED LEDs and dimmable Lumatek drivers. This light-weight fixture is available in 300W (1m2 area) and 200W (0.8m2 area) versions and is ideal as sole-source or supplemental grow lighting for the propagation, vegetative and flowering growth periods of indoor-grown crops.
The ATS is a highly efficient grow light fixture with the 300W model producing 690 µmol/s PPF at 2.3 µmol/J efficacy and ideal for a 1m2 grow area.

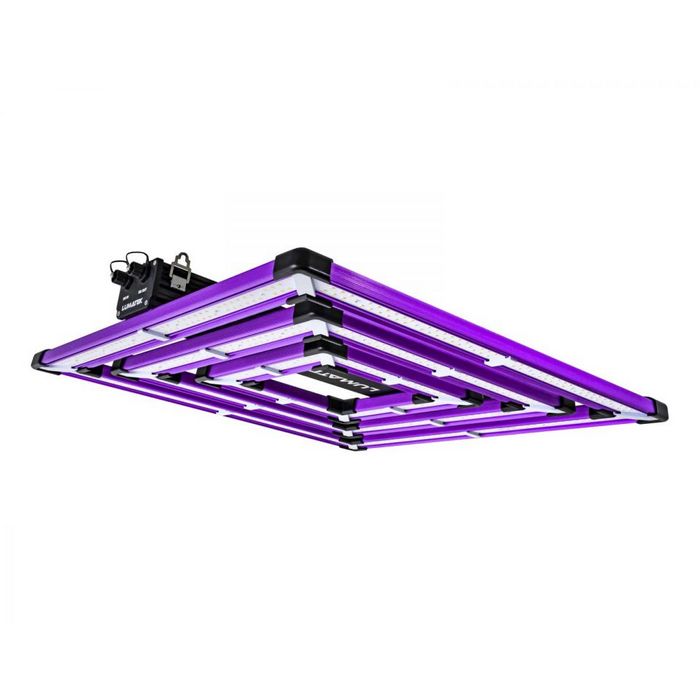

The higher specification Lumatek ATS300W Pro LED is a light-weight fixture producing high levels of PPF of 816 µmol/s and a very high efficacy of up to 2.7 µmol/J, covering perfectly up to 1x1m grow areas.
This Lumatek LED fixture can also be externally controlled with a Lumatek digital lighting controller (Digital Panel Plus 2.0) featuring light timing, automated dimming (1% increments), temperature safety control, Sunrise & Sunset Mode for up to 100 fixtures per controller.

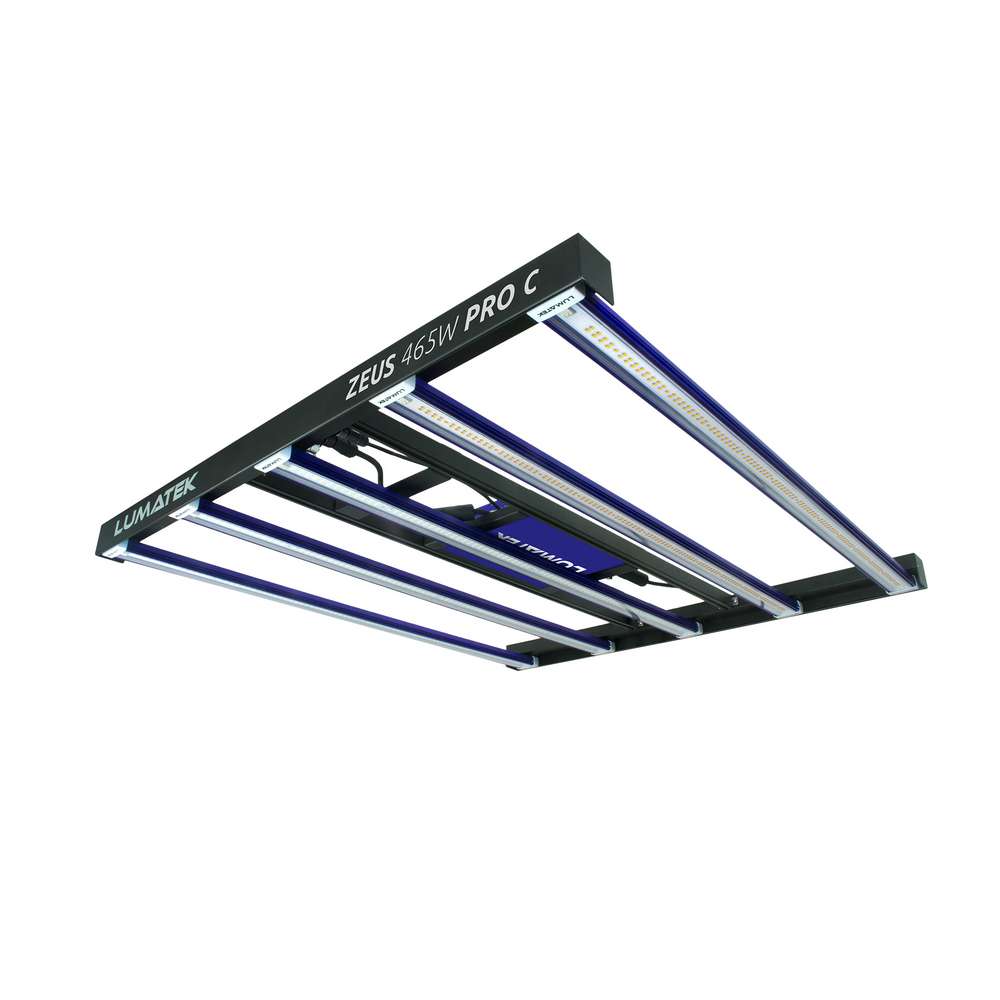

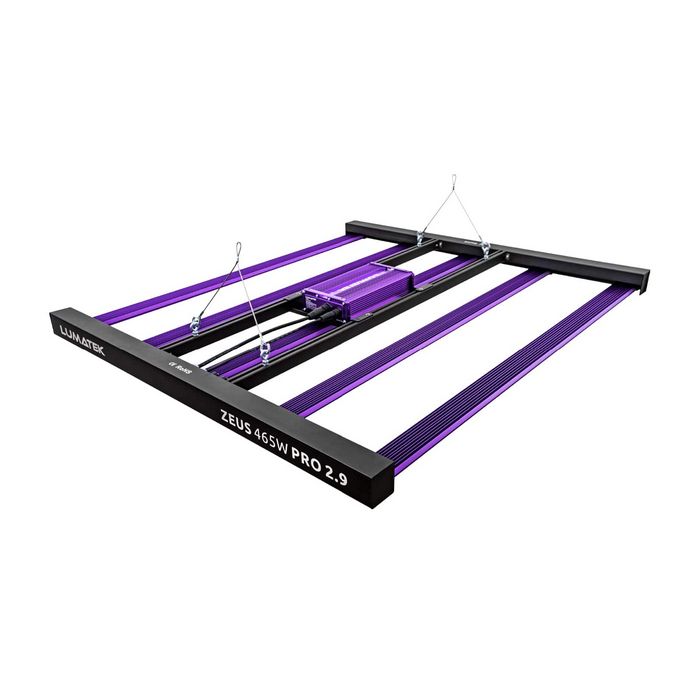

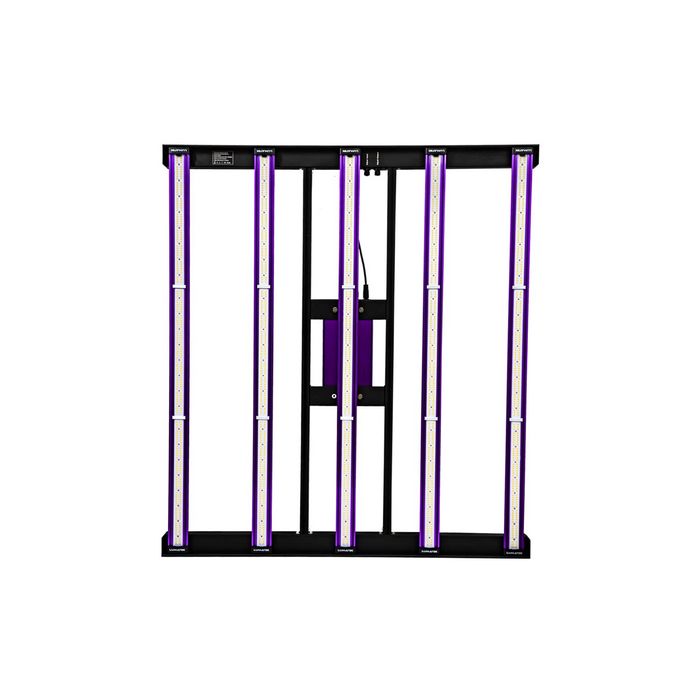

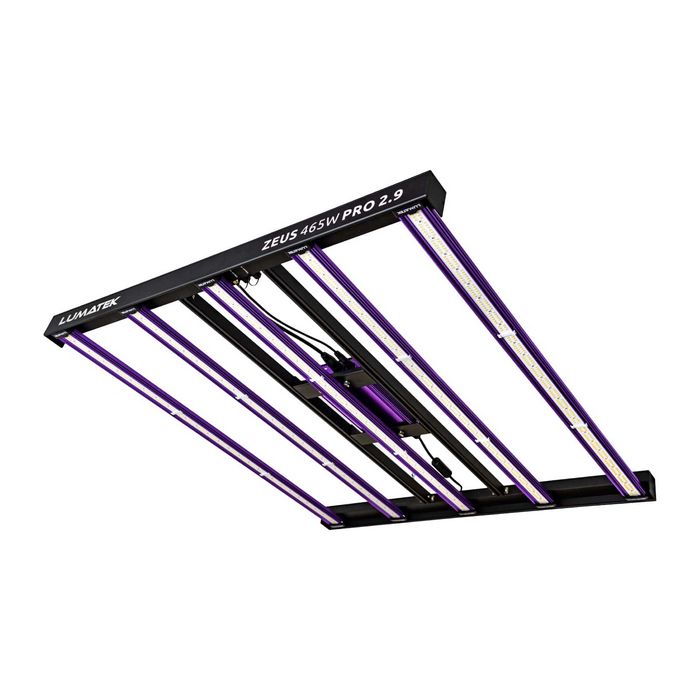

ZEUS 465W PRO 2.9
Do you have a Zeus 465W Pro and are wondering if you can upgrade it for the Zeus 465W Pro 2.9 without buying a full new fixture?
The answer is YES, you can! You simply have to buy the 93W Pro 2.9 Replacement LED Bars. Ideally, we recommend you to upgrade all six bars by removing all five 93W Pro Bars and replace them for five Lumatek 93W Pro 2.9 LED Replacement Bar, Product Code: LUMM0030. If you are unable to replace and purchase all five bars, the minimum we recommend per Zeus 465W Pro is 3 units, otherwise you may face input current disparities. Please contact us if this is something you wish to do.

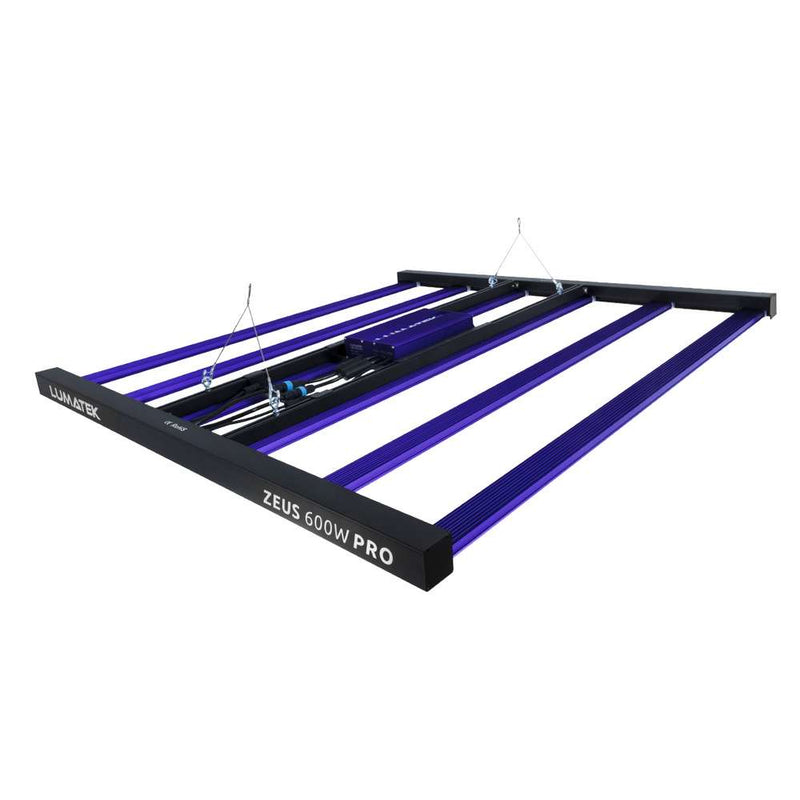

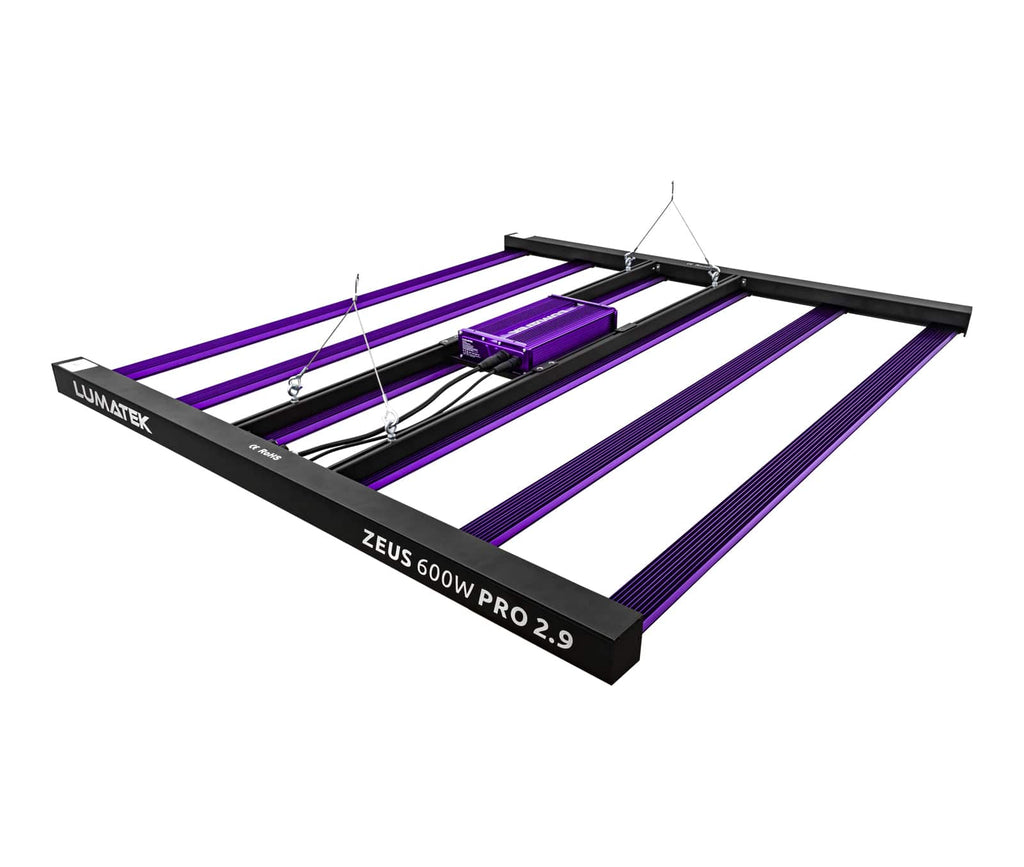

LUMATEK ZEUS 600W PRO LED
With the Zeus Pro 600W light producing 1620umol per second at an awe-inspiring 2.7 μmol per Watt, distributed evenly across a 1.2m x 1.2m or 1.5m x 1.5m space
- Full spectrum light for veg and flowering stages
- Effective for 60,000 hours
- Low profile fixture great in multi-layer setups and short rooms
- Replaceable 100W magnet light bars

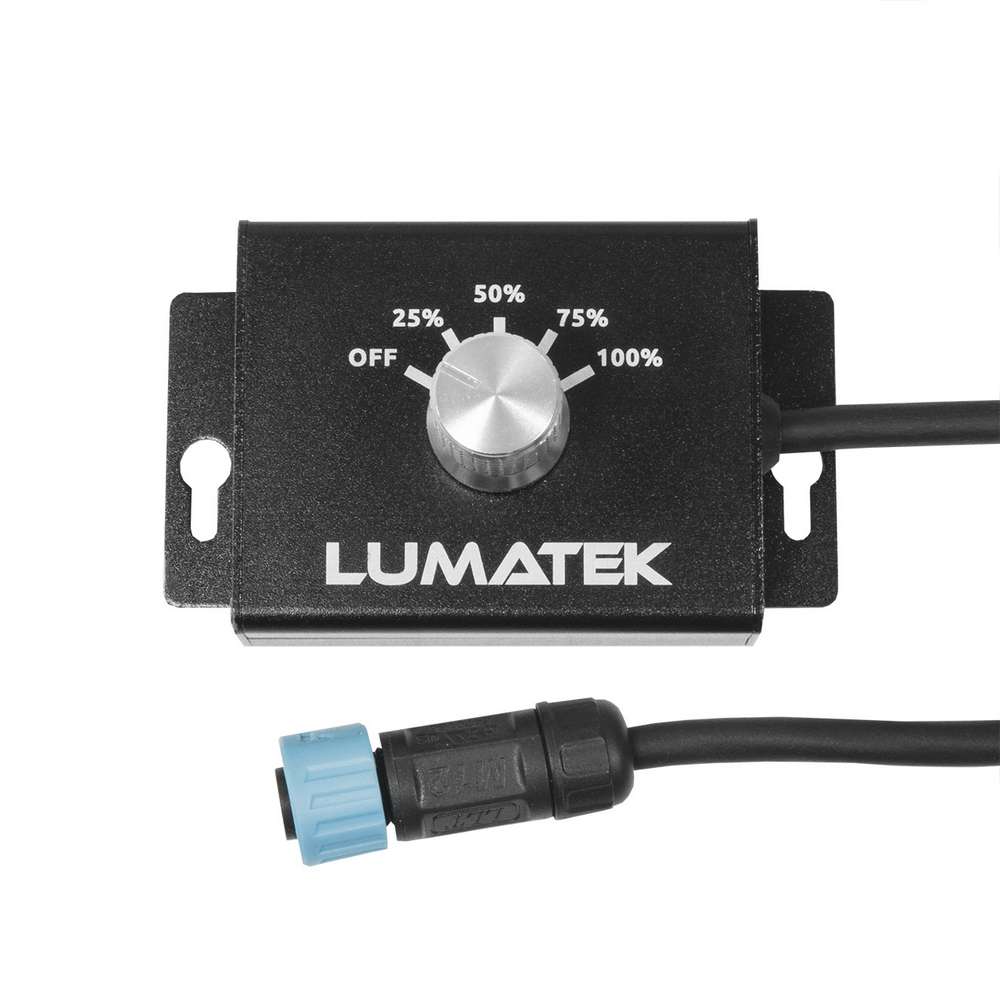

- Dimmable from 100% to 75%, 50% and 25%
The Zeus fixtures can also be externally controlled with a Lumatek digital lighting controller featuring automated dimming, temperature safety control, Sunrise & Sunset Mode for up to 100 fixtures per controller.
Universal Control Systems Compatibility
Lumatek Zeus LED Fixtures can be fully controlled with either the Lumatek Digital Panel or with any other Control System that utilises 0-10V output signal. Even if your Universal Controller has an RJ port interface, you can still run our LEDs by using a signal converter RJ to 0-10V control adaptor.
Compared to regular open HPS/MH solutions the Zeus can achieve 30-40% less HVAC capacity.

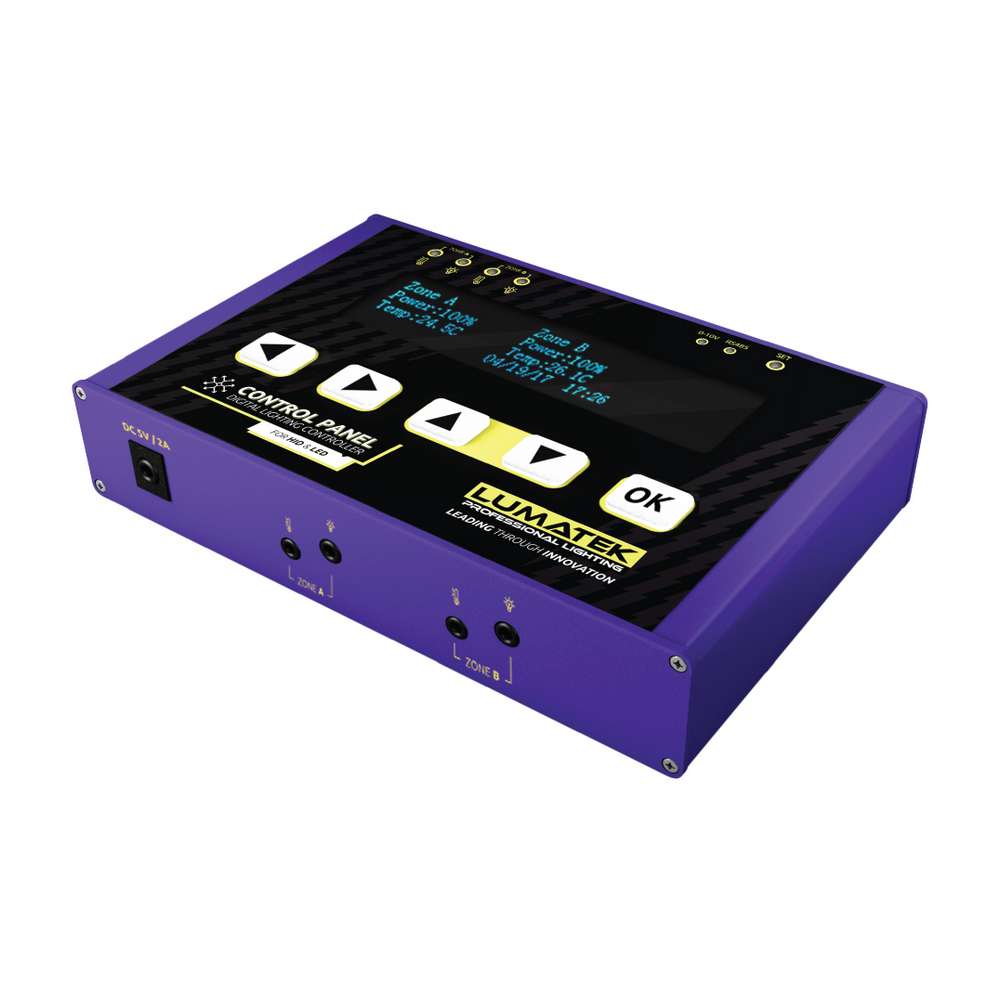

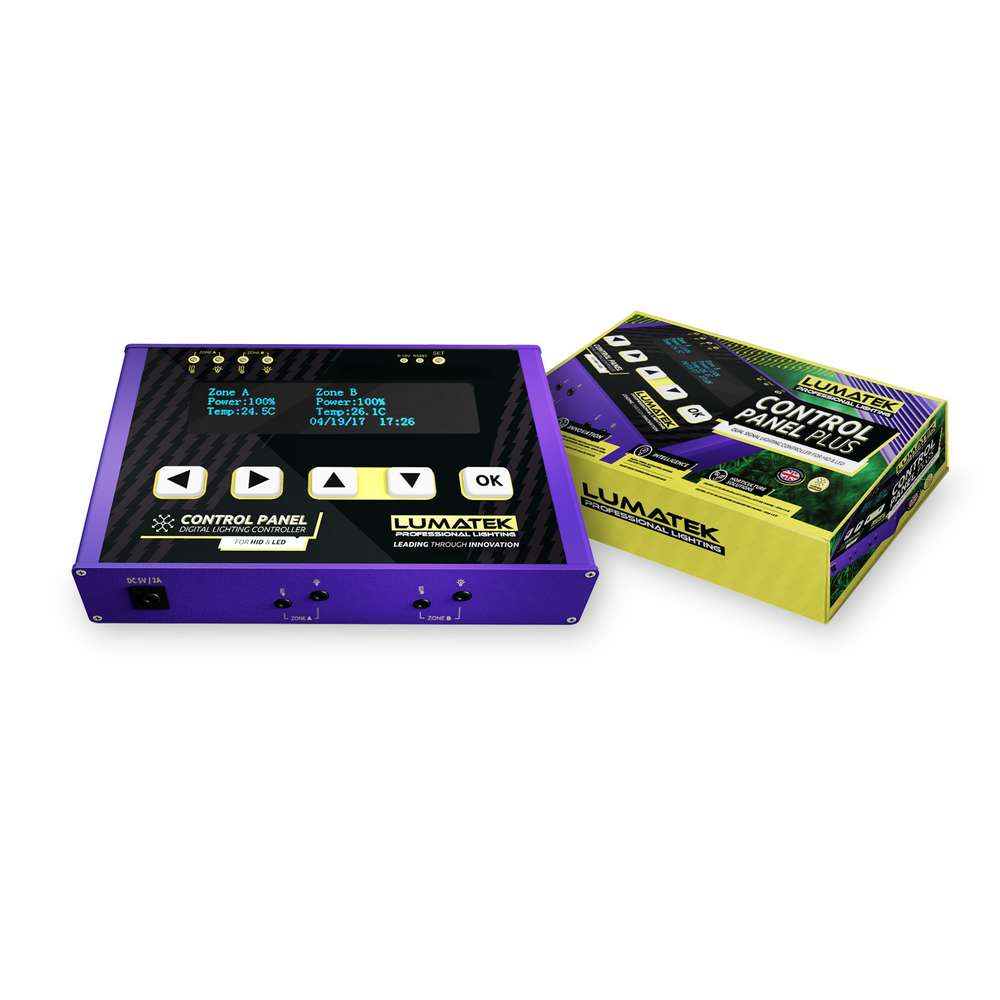

LUMATEK CONTROL PANEL PLUS

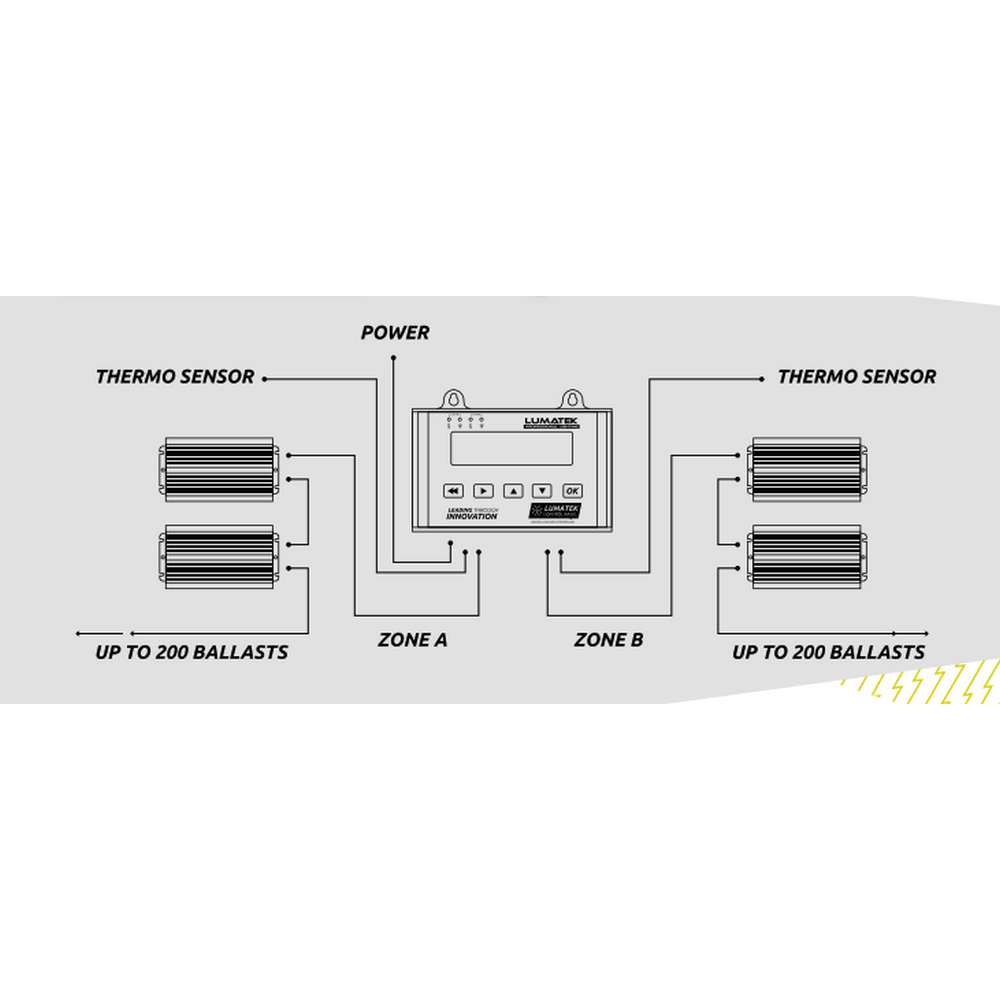

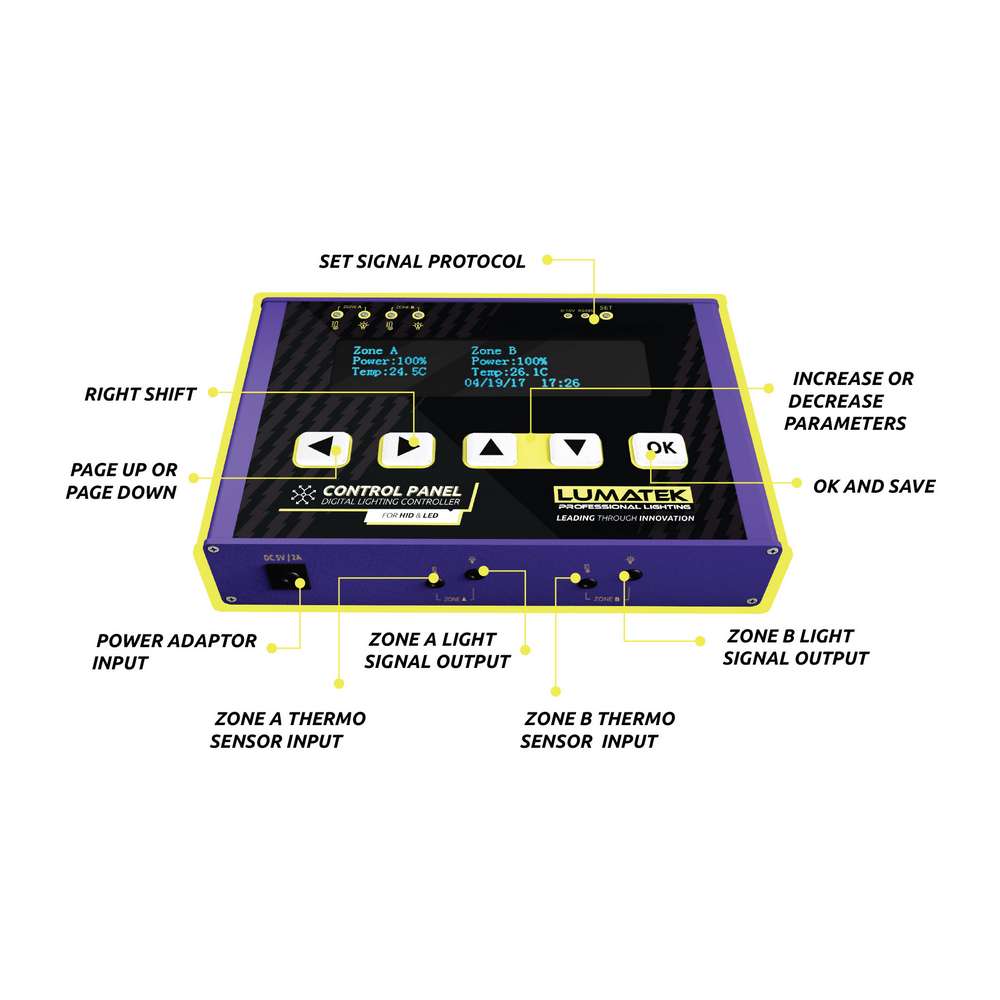

The LUMATEK Control Panel PLUS 2.0 (HID+LED) is a dual signal digital lighting controller that offers precise external control of your Lumatek lighting fixtures, drivers and ballasts. Using innovative technology, this controller smartly monitors your grow room temperatures, light timing & intensity automation, safety-controlled dimming and switching On/Off. Simply connect it to your Lumatek Controllable Fixtures, Drivers or Ballasts and easily regulate your grow room environment.
Each Channel (Zone) can control same-powered ballasts/drivers; Zone A can control the same-powered ballasts/drivers as Zone B or Zone B can be set to control different powered ballasts/drivers eg: Zone A can be set to control 600W LED fixtures and Zone B set to control 600W or 315W HID ballasts.
- Connectable with Lumatek Controllable HID ballasts & fixtures; 315W, 600W, 630W & 1000W
- Connectable with Lumatek Controllable LED drivers & fixtures; 90W, 465W, 600W & 1000W.
- Dual signal RS485 digital for HID and 0-10V analog protocol for LED.
- Automate switching, timing, dimming and simulate sunrise and sunset periods.
- Temperature-control dimming & switching for safety control
- Automate light intensity and PPFD
- Control up to 400 HID ballasts or fixtures (200 ballasts per channel – Zone A & B)
- Control up to 100 LED drivers or fixtures (50 drivers per channel – Zone A & B)

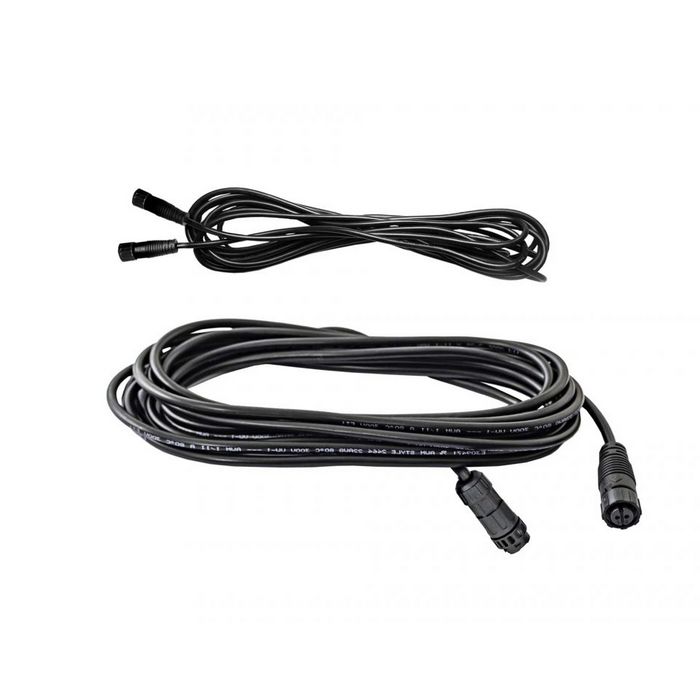

LUMATEK LED DRIVER REMOTE USE 5M EXTENSION CABLES (x2)
These three 5m long Extension Cables are designed to connect the Lumatek driver and LED fixture, in case the driver is used remotely and away of the fixture.

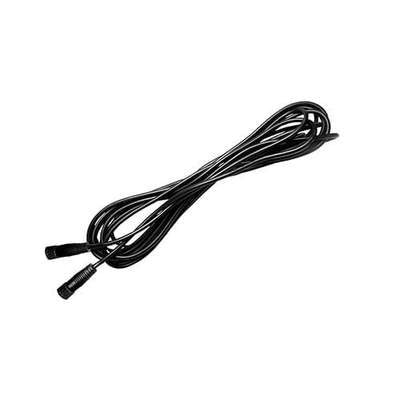

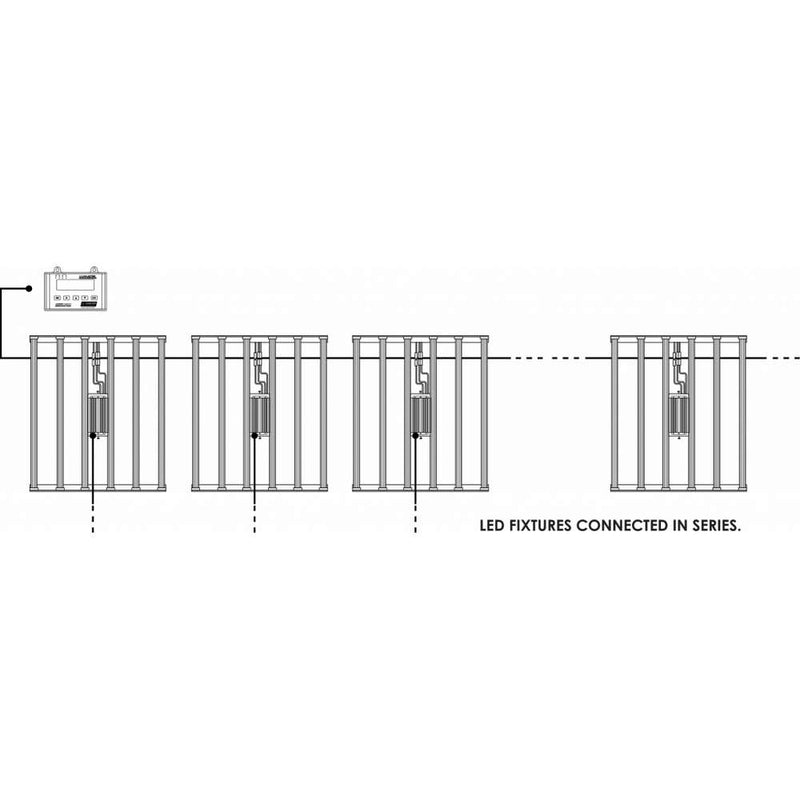

LUMATEK LED DAISY CHAIN CONTROL CABLE
This 5m long Control Link Cable is designed to daisy-chain your LUMATEK Controllable LED Fixtures allowing a stable and precise connection without any interference.
Simply connect the M12 Self-locking male plug into the Signal Out LED structure output and the M12 Self-locking female plug into the Signal In LED structure input of the next fixture.

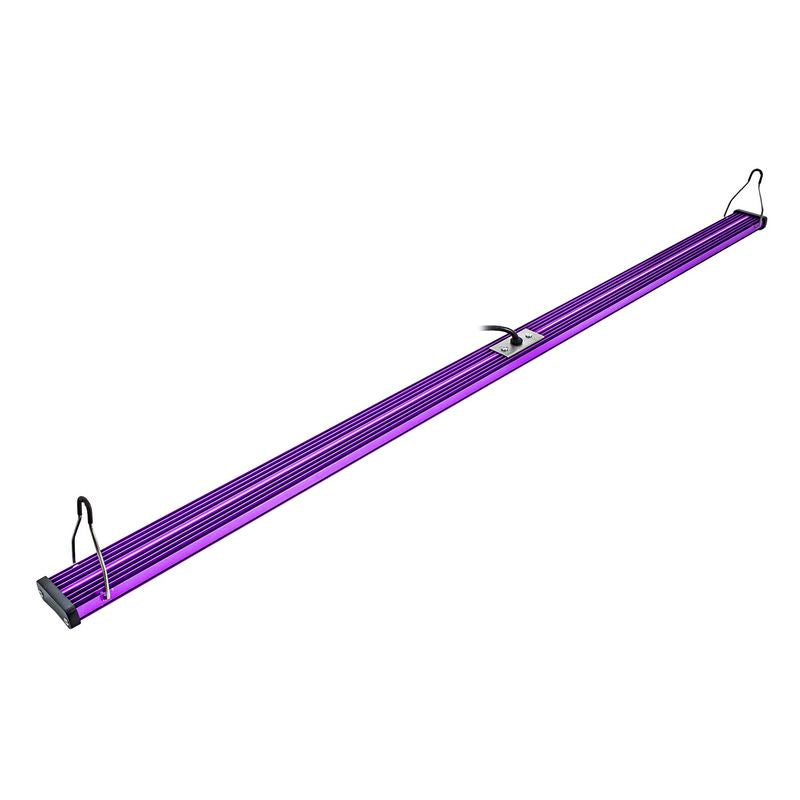

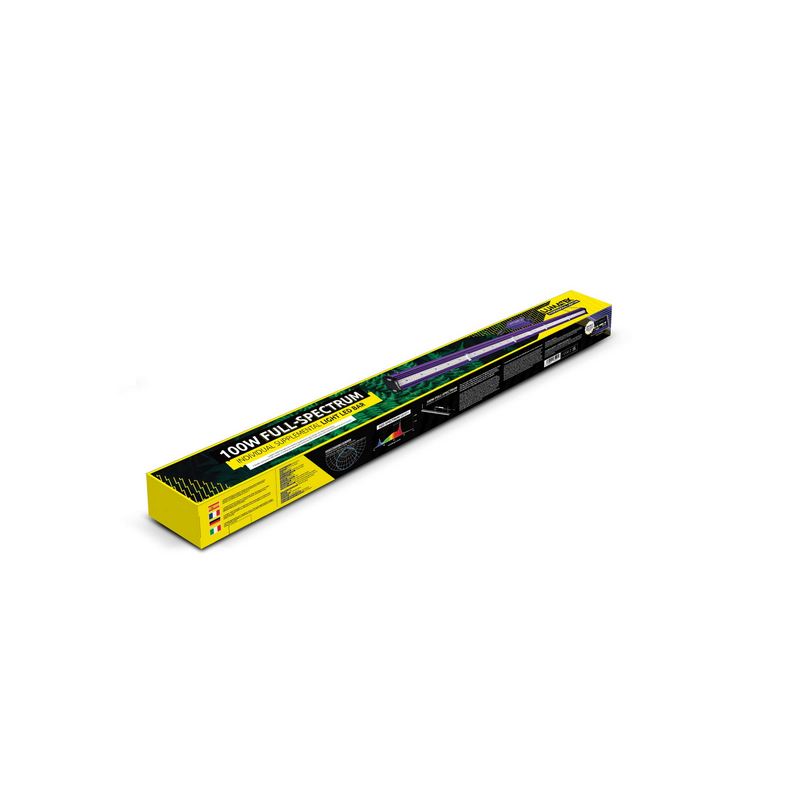

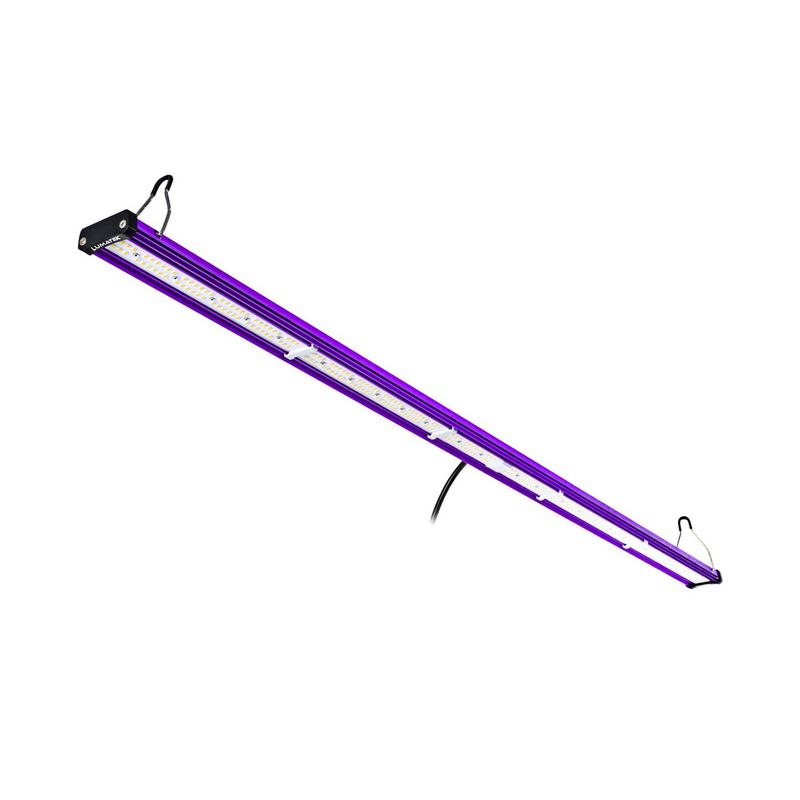

Lumatek 100W Full-Spectrum Individual Supplemental Light LED Bar

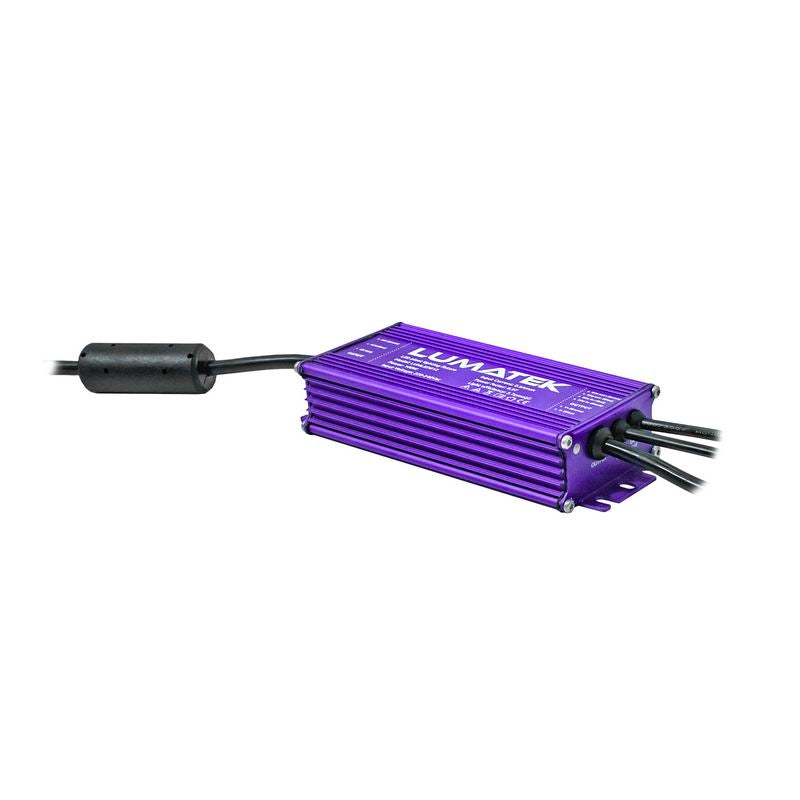

The Lumatek 100W Full-Spectrum Individual Supplemental Light LED Bar with a 100W remote driver is a flexible and dynamic LED solution to improve your grow results, producing a PPF of 295 µmol/s and a very high efficacy of up to 2.9 µmol/J
You can either use it as an add-on for your grow space that lacks light intensity, placing it at the top, side or bottom; or just use it as propagator for your cuttings and seedlings.
Optimize your indoor plant growth with this versatile LED light and its wide variety of applications. It produces the exact same light quantity and light spectral quality as each LED bar from our latest Zeus Pro 2.9 range, but with the difference of being a totally independent fixture with its own 100W high efficiency driver.
With the advances in technology and fixture performance, high quality LED horticultural lighting is now a credible option offering significant return on investment to cultivators. Lumatek full spectrum horticultural LED solutions balance light quality (spectra) with light quantity (intensity and duration) ensuring an even light distribution and uniform spread.
The fixture efficacy will vary depending on the Input Voltage used.
The new Lumatek LED line is built using high quality Lumatek drivers and latest generation top bin LEDs from Lumileds and Osram, generating a full-spectrum light source ideal for veg and flowering cycles. Another new feature of this line is the Clear Glue protection cover technology on the LED bars; resulting in higher light transmittance of 99% without light loss, extended lifetime of diodes, extra corrosion resistance and high waterproof of IP65. For basic maintenance, simply clean the bars with wet cotton.
For different cultivars, propagation and vegetative growth periods this LED bar may be dimmed without losing efficiency. This high efficiency and low powered configuration with its outstanding passive cooling thermal management, reduces the temperature of the LEDs increasing the output and improving light maintenance.
