Description

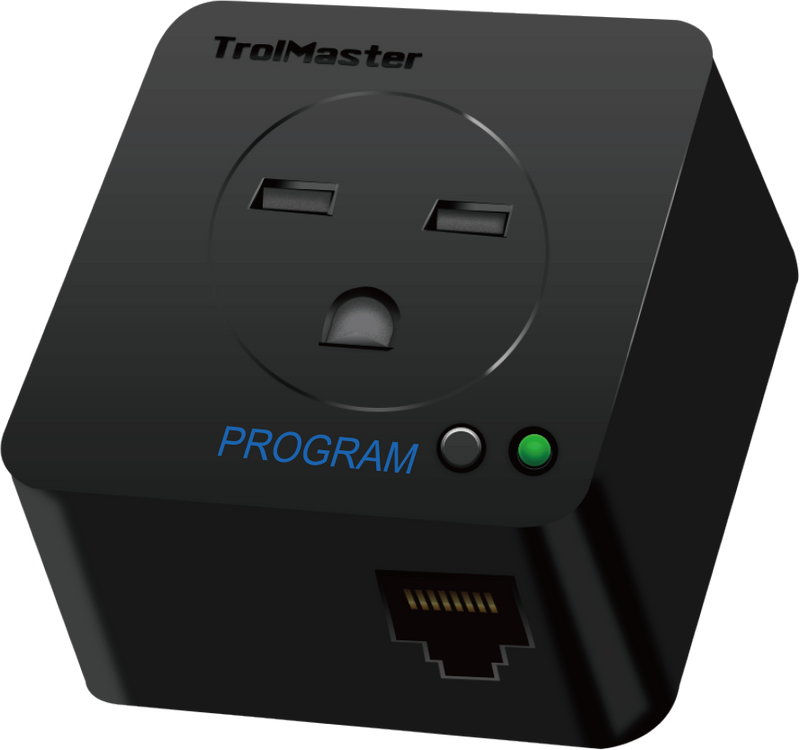

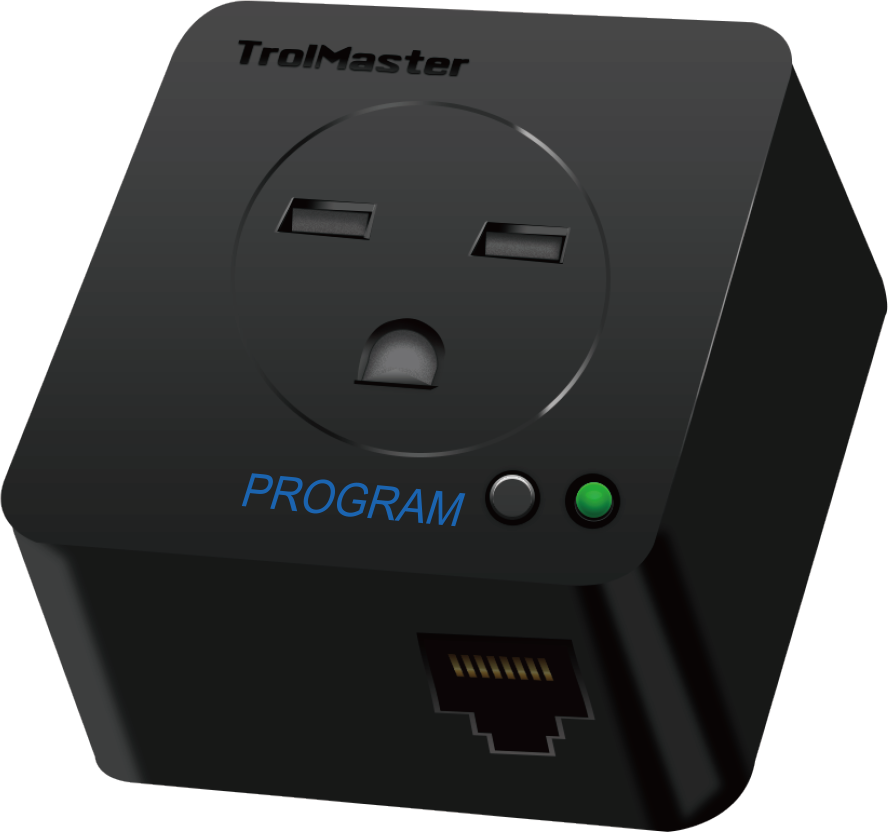

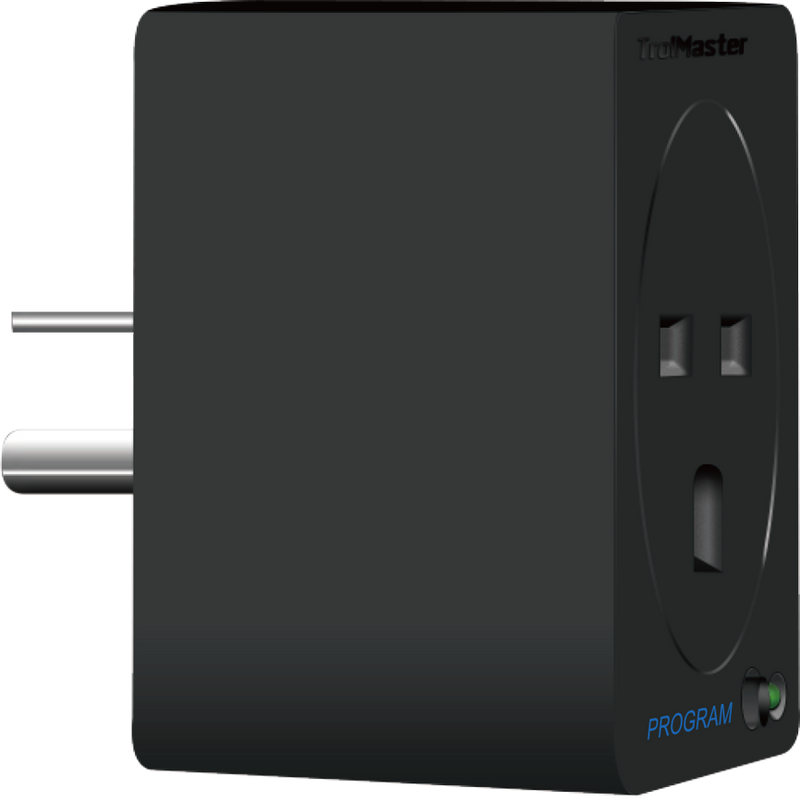

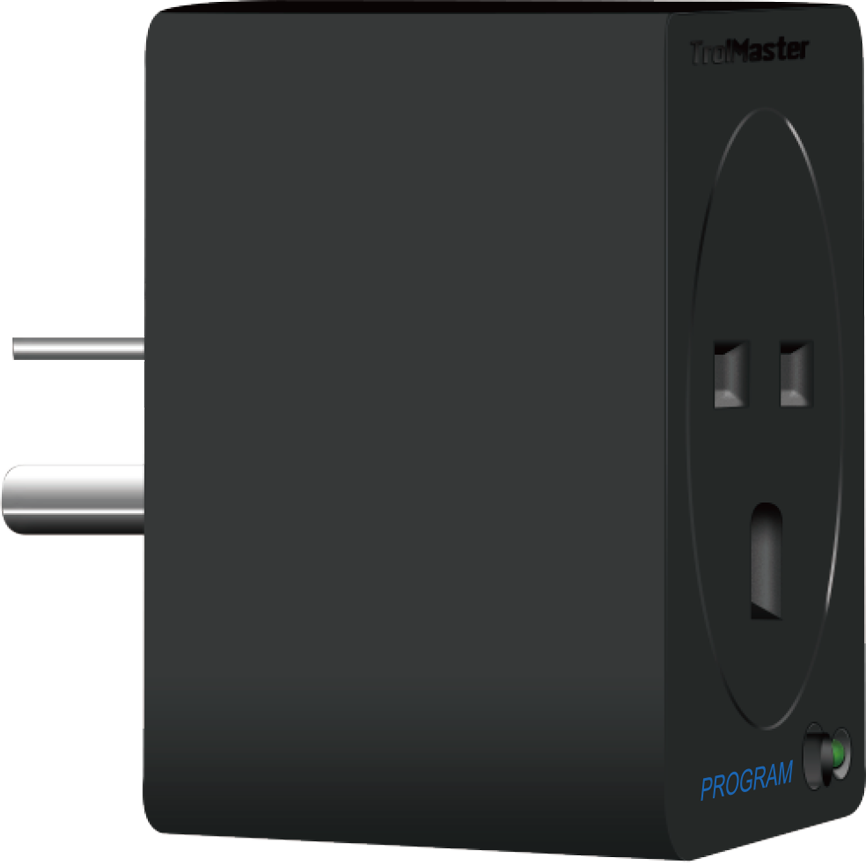

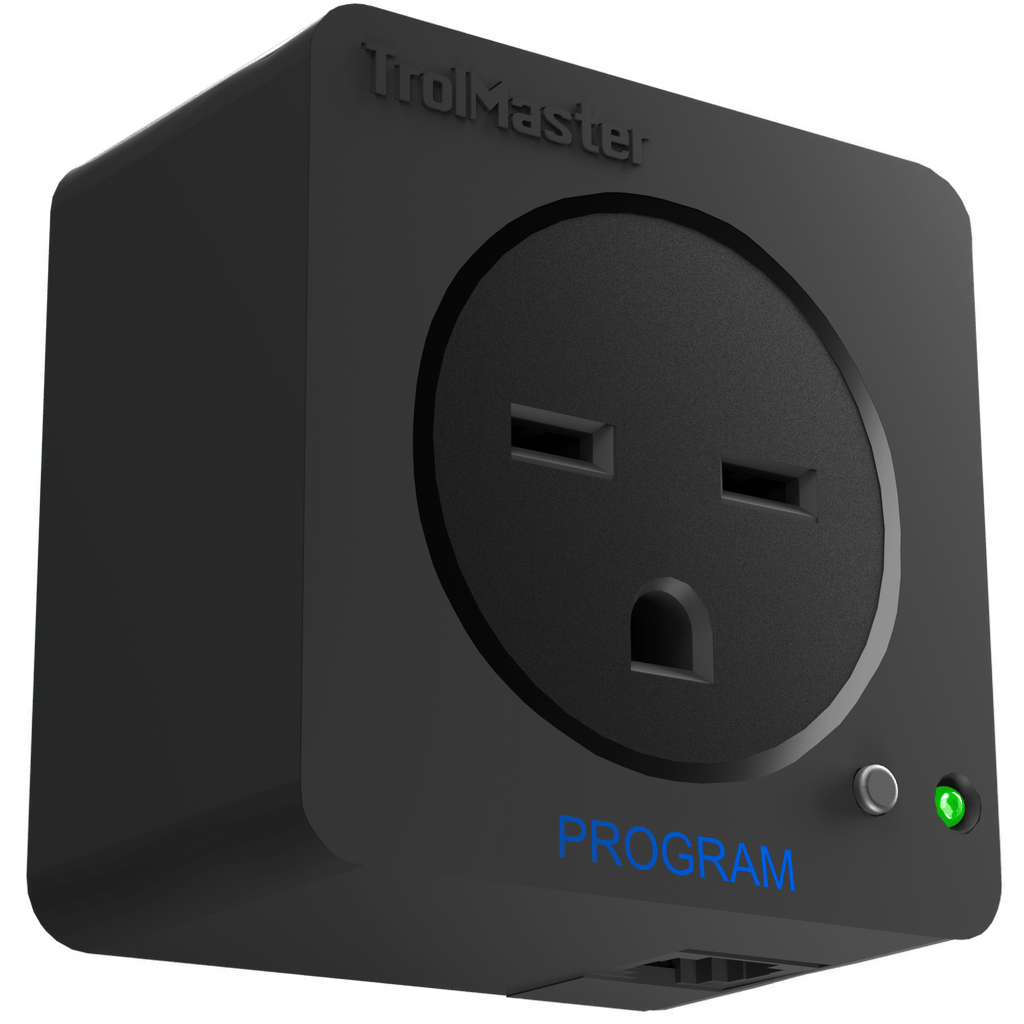

The TrolMaster DSP-2 program device module (timer module) works as a multi-function timer. The DSP-2 allows the user to easily connect any device that needs to be controlled by TIME to the Hydro-x. The DSP-2 can control any device that is 10-amps at 240 volts or less.
LED status:
* Blinking green: If the LED is blinking quickly, it means the module is has been addressed to the controller OR that module does not have a good connection to the controller. *Pressing the small button on the module will address/link the module when first installed.
* Blinking green: If you see a slowly blinking green LED, it means the module is addressed and connected to the controller, and the module is currently turned OFF.
* SOLID green: If you see the LED is on solid (no blinking), it means the modules are addressed, connected, and currently turned ON.
* Blinking red: If you see the LED change to blinking red, it means the module has been overloaded. To reset the overload, unplug the module from the power.
