Description
Please note; we recommend to use the AC infinity carbon filters with these fans. This is due to a slight size difference with the fan neck size compared to the UK market. The 12" fan is only 300mm neck size so will not attach directly to a UK style 12.5" (315mm) filter with a fast clamp.
Product Description

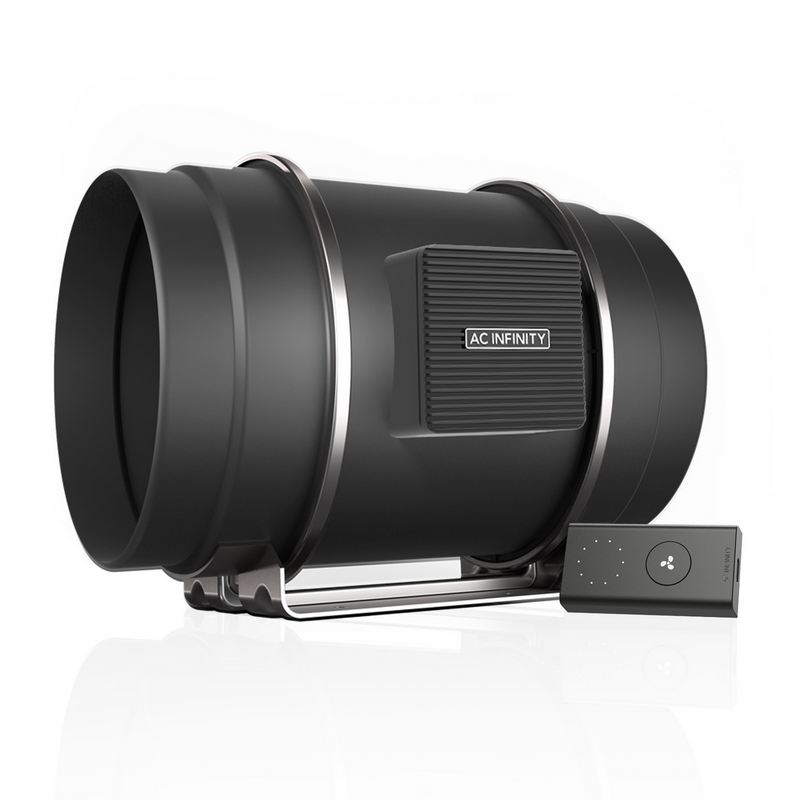

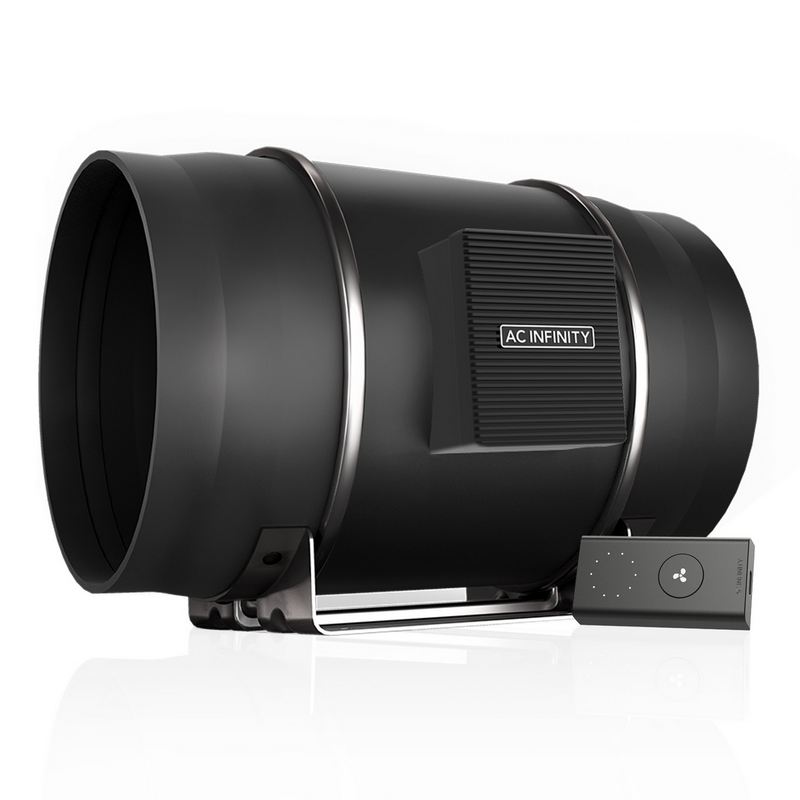

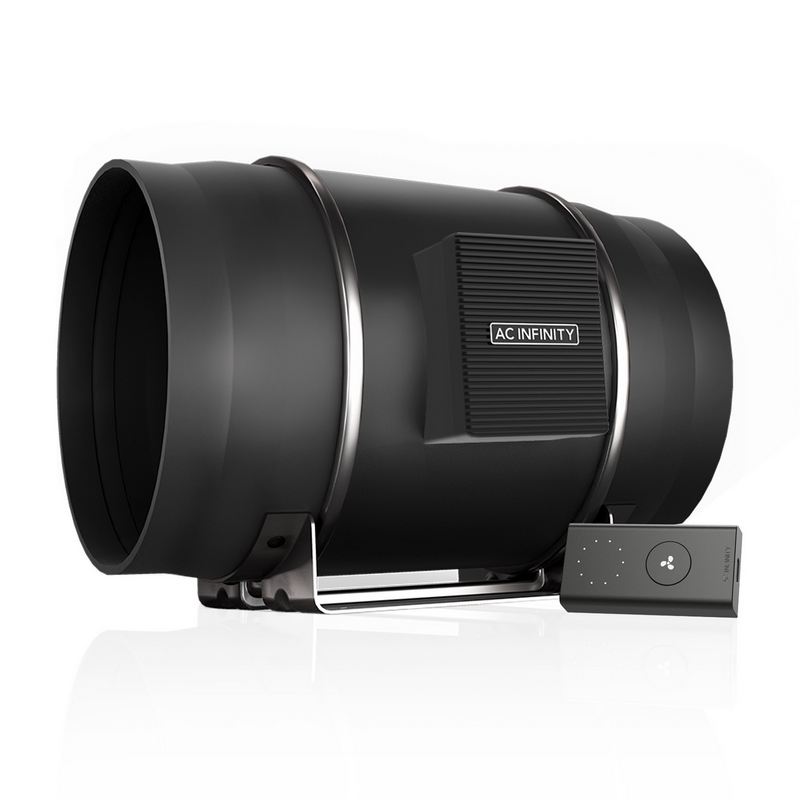

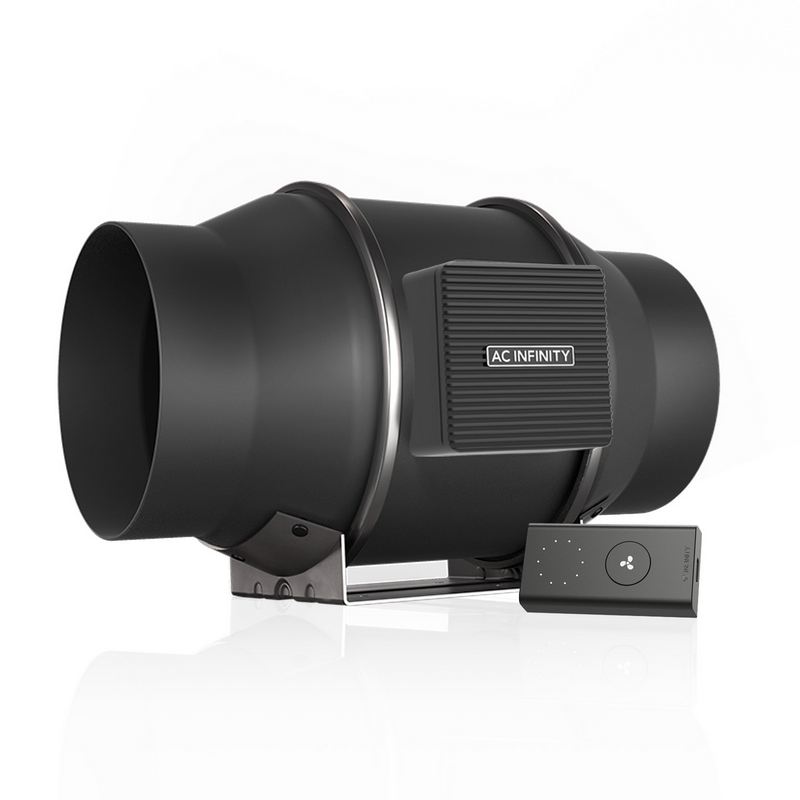

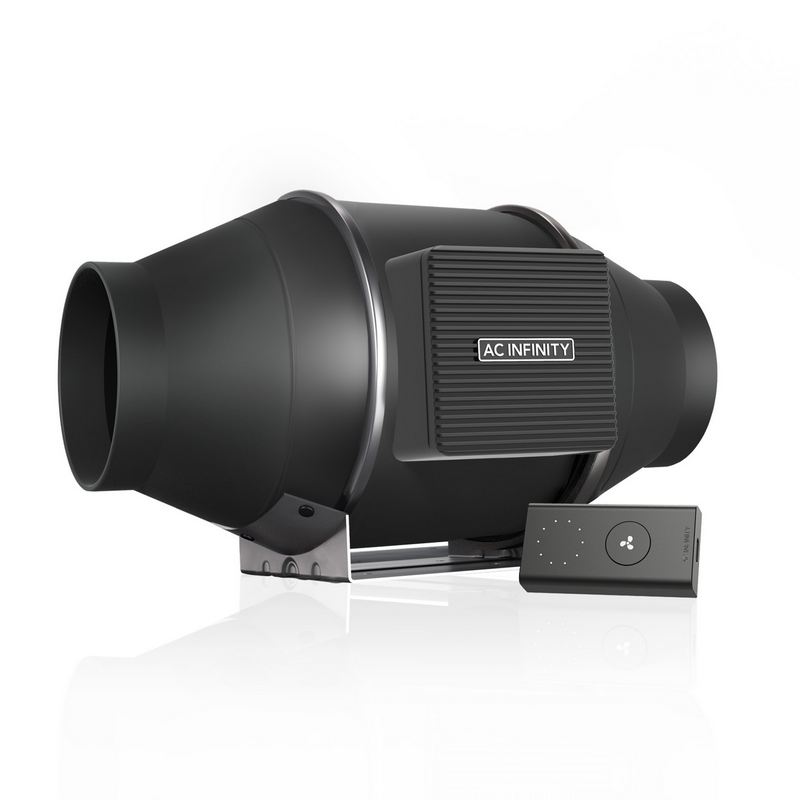

This smart inline duct fan is a versatile solution, designed to quietly ventilate hydroponic grow environments, circulate fresh air, boost heating/cooling to rooms, exhaust projects, and cool AV closets. Its inline mixed-flow design allows it to maintain airflow even in high static-pressure applications. The PWM-controlled EC motor ensures energy-efficient and quiet performance. The motor box, containing the fan's blades and impeller, can be detached from the mounted frame for easy maintenance and cleaning. With a smart controller featuring dynamic climate and time-based programming, and the ability to connect to multiple UIS devices, this product is a part of the UIS™ platform of smart controllers and growing devices, designed to integrate with each other to achieve your ideal environment.
Precise Speed Controller
The speed controller enables you to set the duct fan's speed between ten-speed levels to optimal airflow and noise levels in various environments. The precise airflow control is supported by the inline fan's cutting-edge EC motor, which is controlled precisely using PWM (Pulse Width Modulation). This enables it to run smoothly at extremely low RPM speeds without generating motor noise. Also features memory backup that retains the last speed setting whenever power is cut off from the controller.
Quiet & Energy Efficient Design
This duct fan uses a mixed-flow design using dual hydrodynamic wind circles and a stator blade, enabling it to deliver airflow even in applications where air movement is restricted. The motor houses dual ball bearings rated at 67,000 hours which allows the duct fan unit to be mounted in any direction. The unit is IP44 rated to be highly resistant to liquids and dust and performs well even in harsh environments.
Applications
This quiet duct fan system is popular in a variety of applications, including cooling AV equipment rooms, closets, racks, and cabinets. Its advanced control features and low noise make it a preferred choice for various air circulation and ventilation projects, including hydroponic grow rooms and tents, exhausting bathrooms and attics, and other installations.
Key Features
- Designed to quietly ventilate grow tents, circulate fresh air, transfer heating/cooling to rooms, and cool AV closets.
- It features a wired 10-speed fan controller that is compatible with all UIS controllers with intelligent programming.
- The PWM-controlled EC motor of this duct fan provides quiet and energy-efficient performance, minimizing heat and noise. This not only ensures a comfortable environment but also reduces energy consumption, making it an environmentally conscious and cost-effective choice. A mixed flow design with stator blade and hydrodynamic wind circles enables airflow delivery in high-resistance areas.
Available in 6", 8" & 12" sizes:
- Duct Size: 6" | Dimensions: 7.9 x 12.6 x 8.4 in. | Airflow: 402 CFM | Noise: 32 dBA | Bearings: Dual Ball
- Duct Size: 8" | Dimensions: 8.5 x 11.9 x 9.2 in. | Airflow: 807 CFM | Noise: 39 dBA | Bearings: Dual Ball
- Duct Size: 12" | Dimensions: 12.2 x 17.7 x 14.0 in. | Airflow: 1604 CFM | Noise: 62 dBA | Bearings: Dual Ball
